This FIX4U manual walks through iPhone 16e screen replacement the way we approach it in our Rosedale workshop — based on the current public iFixit tear-down sequence, rewritten for customers and technicians. It includes a clear Install section (adhesive, reconnect, seat the new screen, and pentalobe screws).

Safety: drain battery below ~25% before opening. On iPhone 16-class devices the battery often cannot be disconnected first — avoid metal tools near connectors. Soften adhesive with controlled heat only.

Procedure adapted for FIX4U workshop use from the public iFixit iPhone 16e Screen Replacement guide. Photos scrubbed of third-party logos. Not a substitute for trained technician work — book in-store for warranty-backed repair.

1) Prepare & open (disassembly)

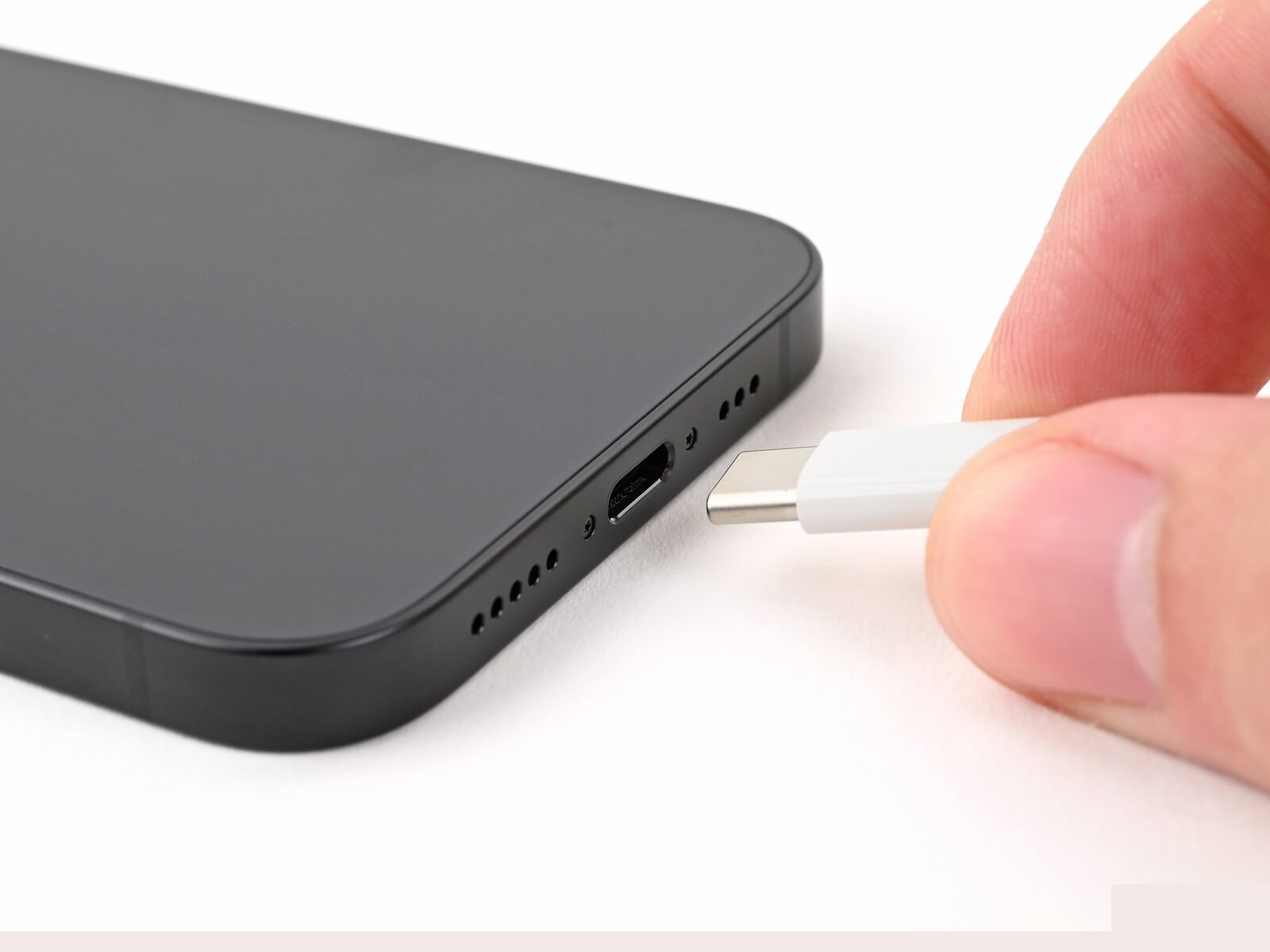

1. Before you begin

Allow the iPhone 16e's battery to drain below 25%, as a charged lithium-ion battery is a potential safety hazard. Unplug any cables from the iPhone 16e. Hold the power button and either volume button, then slide to power off the iPhone 16e.

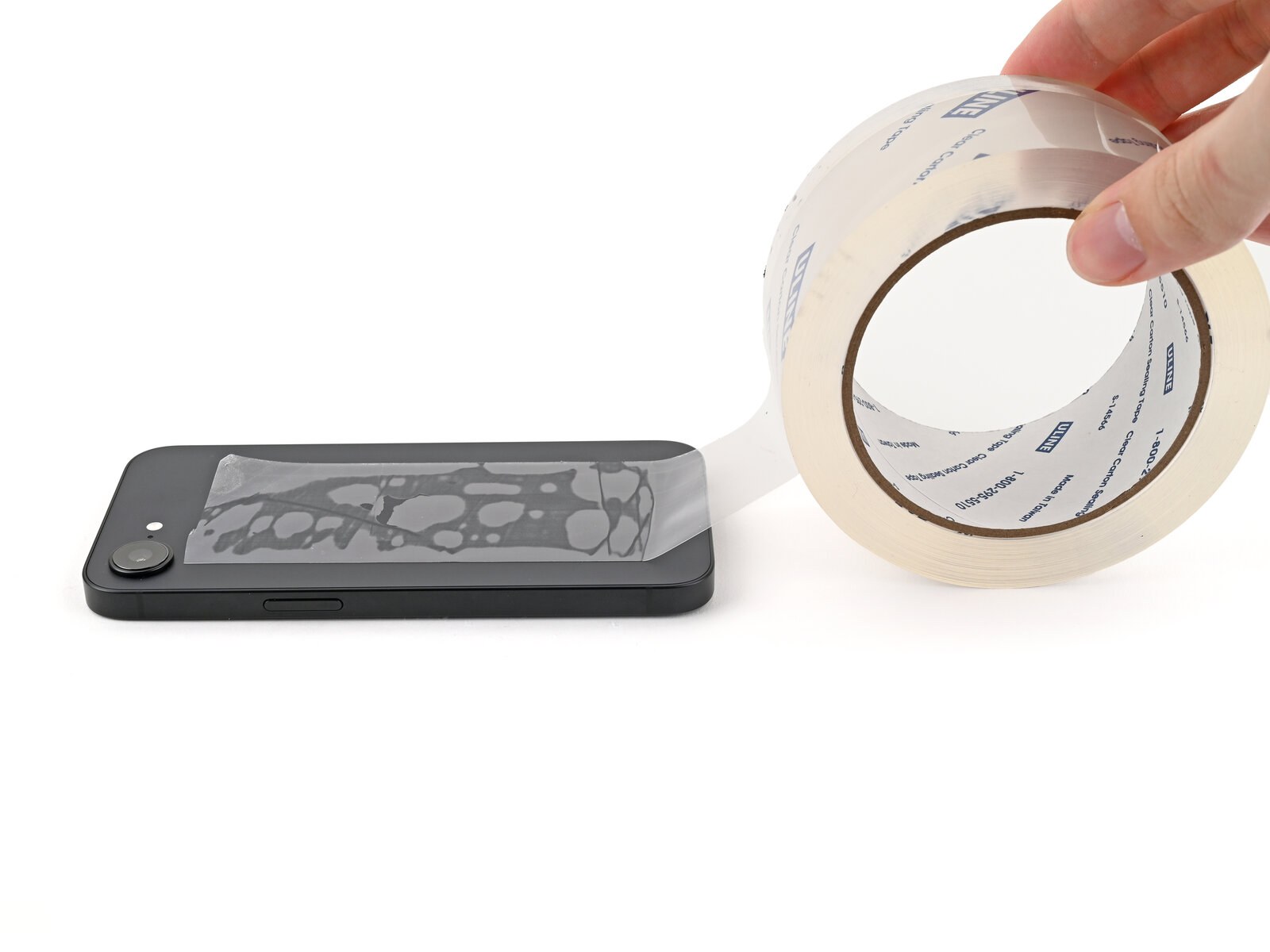

2. Tape over any cracks

If your screen or back glass is badly cracked, lay overlapping strips of packing tape over the glass to protect yourself and make disassembly easier. Make sure there's a smooth area near the bottom edge that's big enough for a suction cup to stick to.

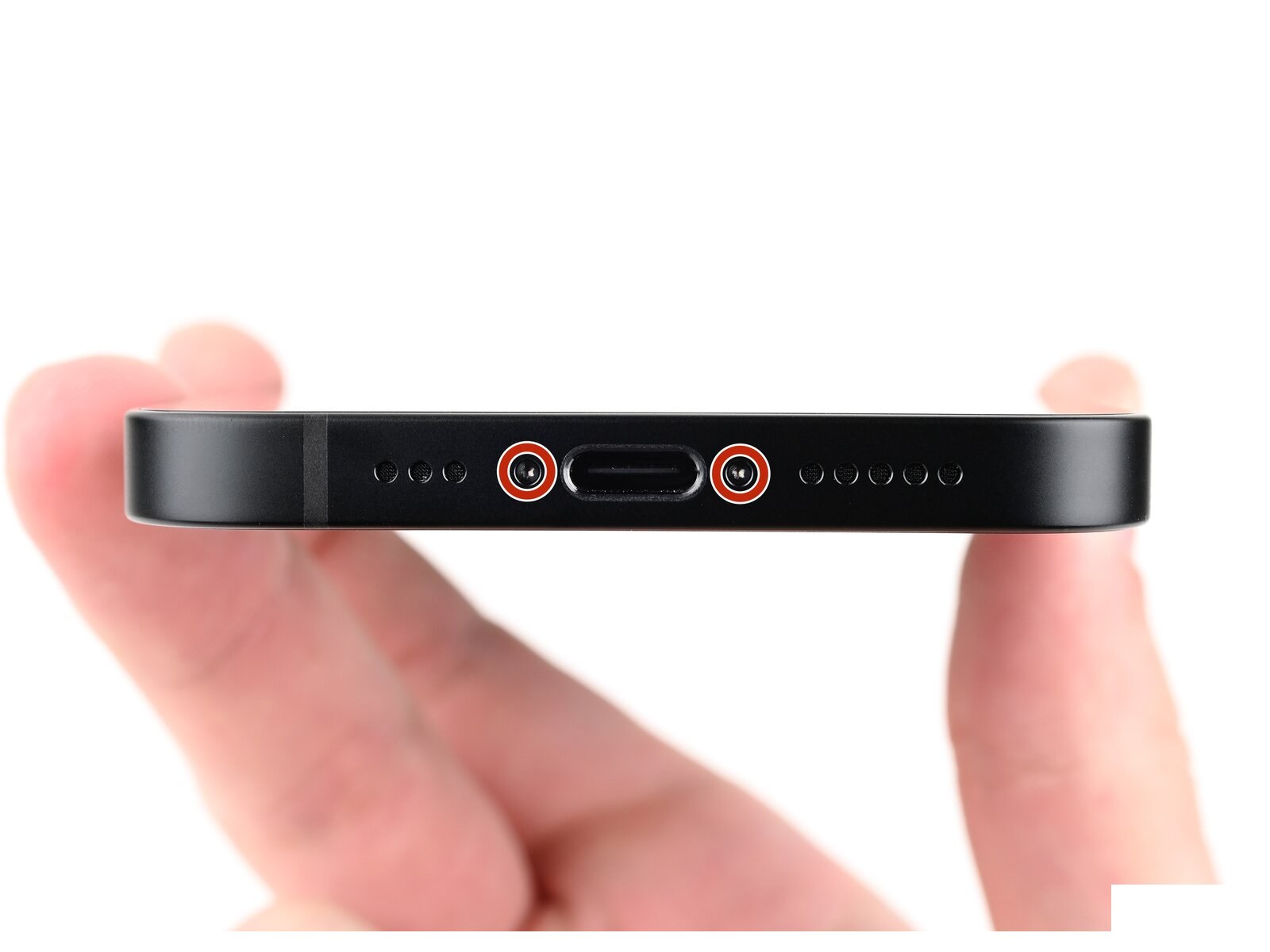

3. Remove the pentalobe screws

Use a pentalobe P2 screwdriver to remove the two 7.8 mm‑long screws on either side of the charging port.

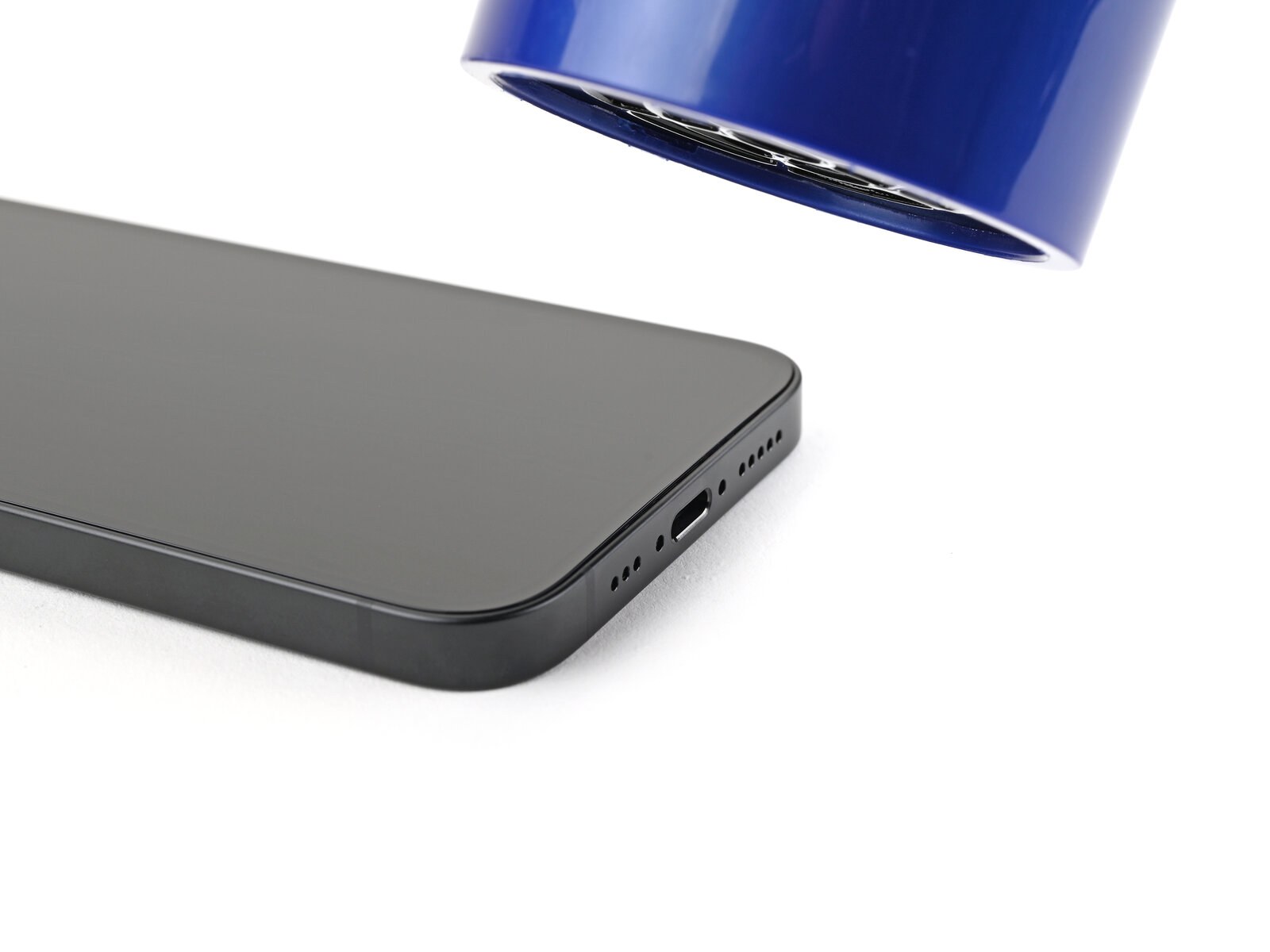

4. Heat the bottom edge

Use a hair dryer or heat gun to heat the bottom edge of the screen until it's hot to the touch. You can also use an iOpener to heat the screen. Follow these instructions to heat and apply the iOpener properly.

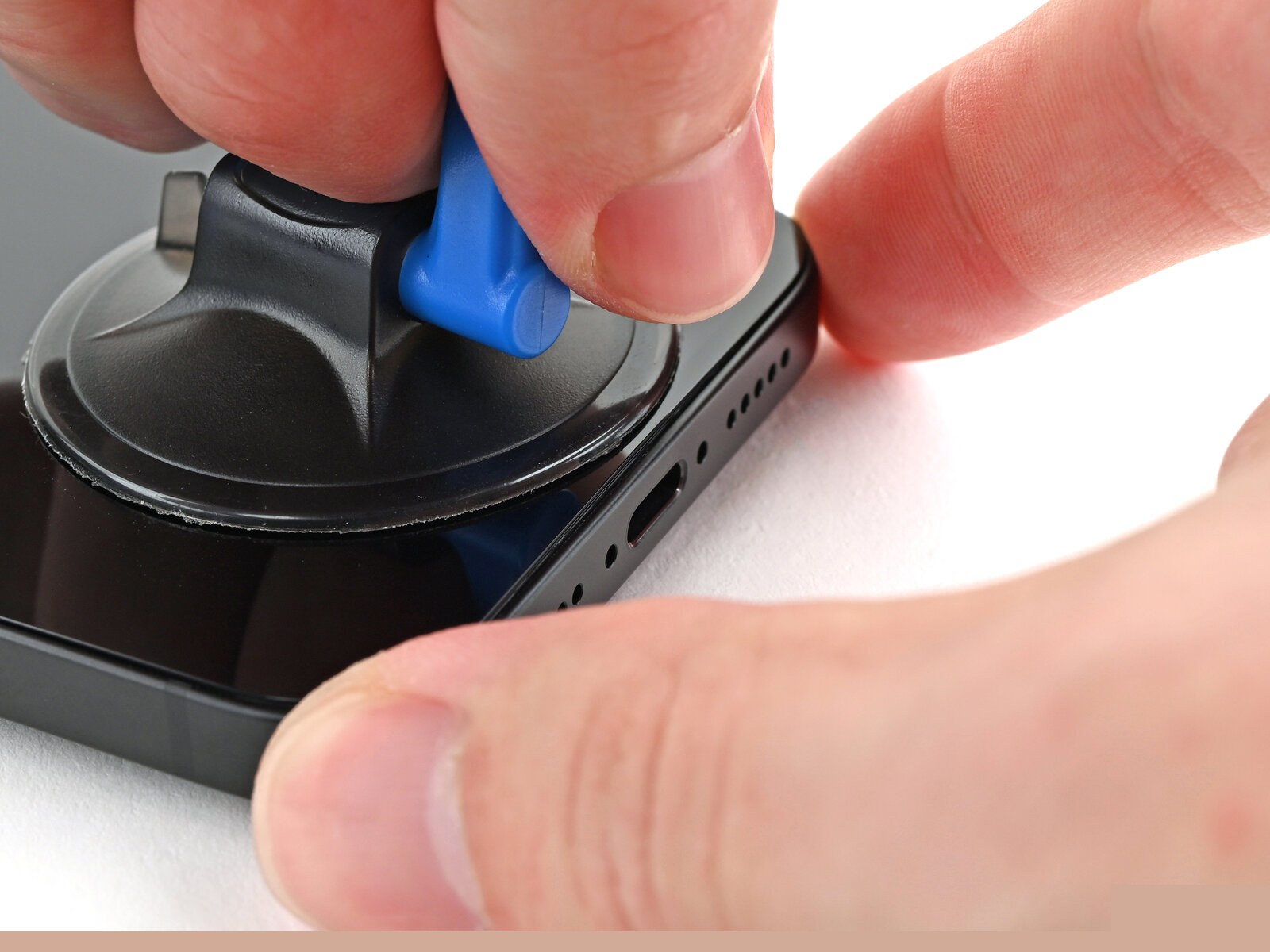

5. Insert an opening pick

The screen consists of a display panel and a bezel. Make sure you insert the pick under the bezel, or you risk separating the two layers and destroying the screen. Apply a suction handle to the bottom edge of the screen. While holding the frame down with one hand, pull up on the handle with a strong, steady force to create a gap between the screen and the frame. Insert the tip of an opening pick into the gap.

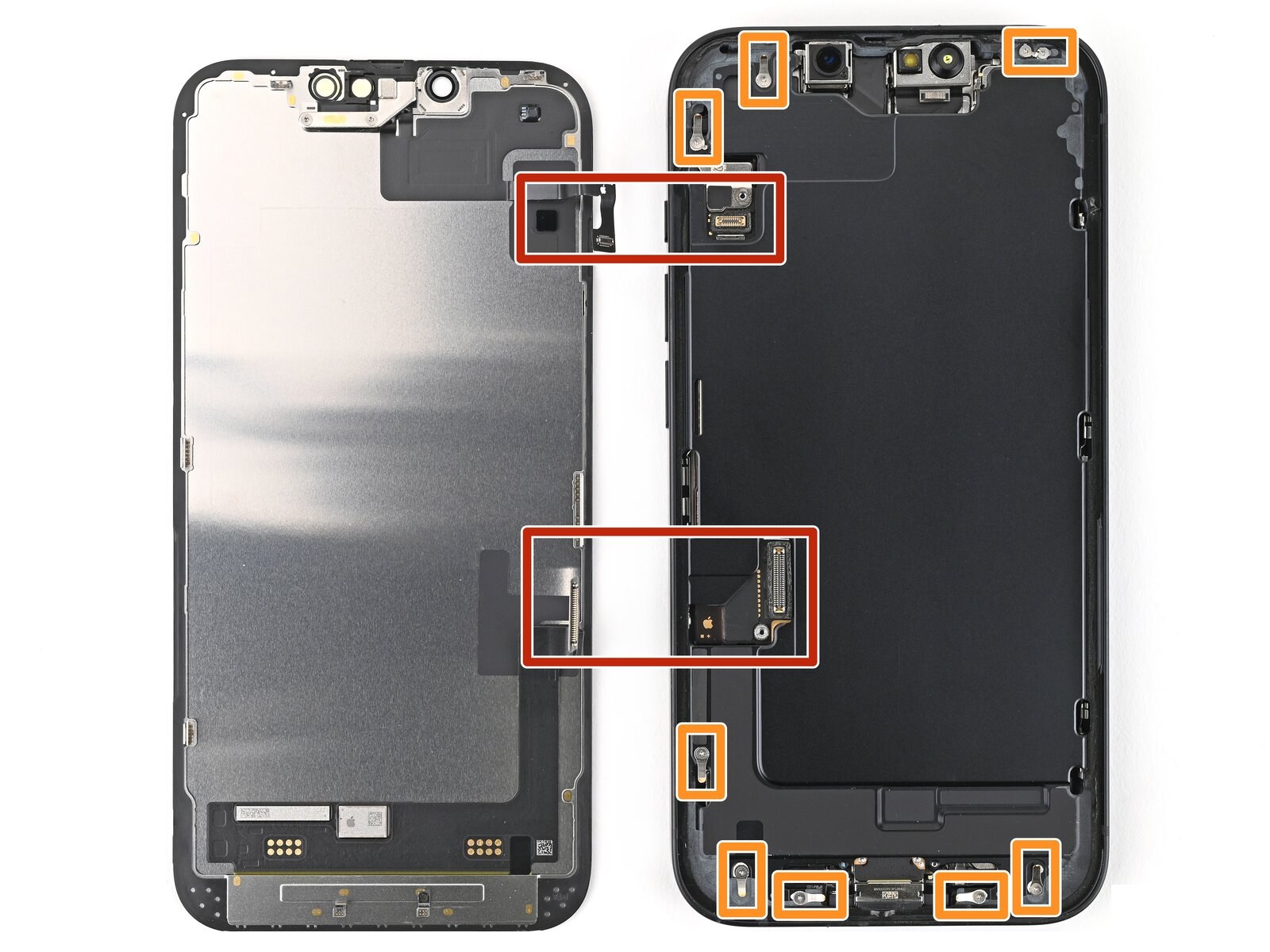

6. Screen information

As you slice the adhesive securing the screen in the following steps, don't insert your pick deeper than 3 mm to avoid damaging the following areas: Two delicate cables connecting the screen to the phone—one next to the Action button and the other about halfway between the volume down button and the bottom of the phone. Multiple spring contacts around the perimeter of the phone.

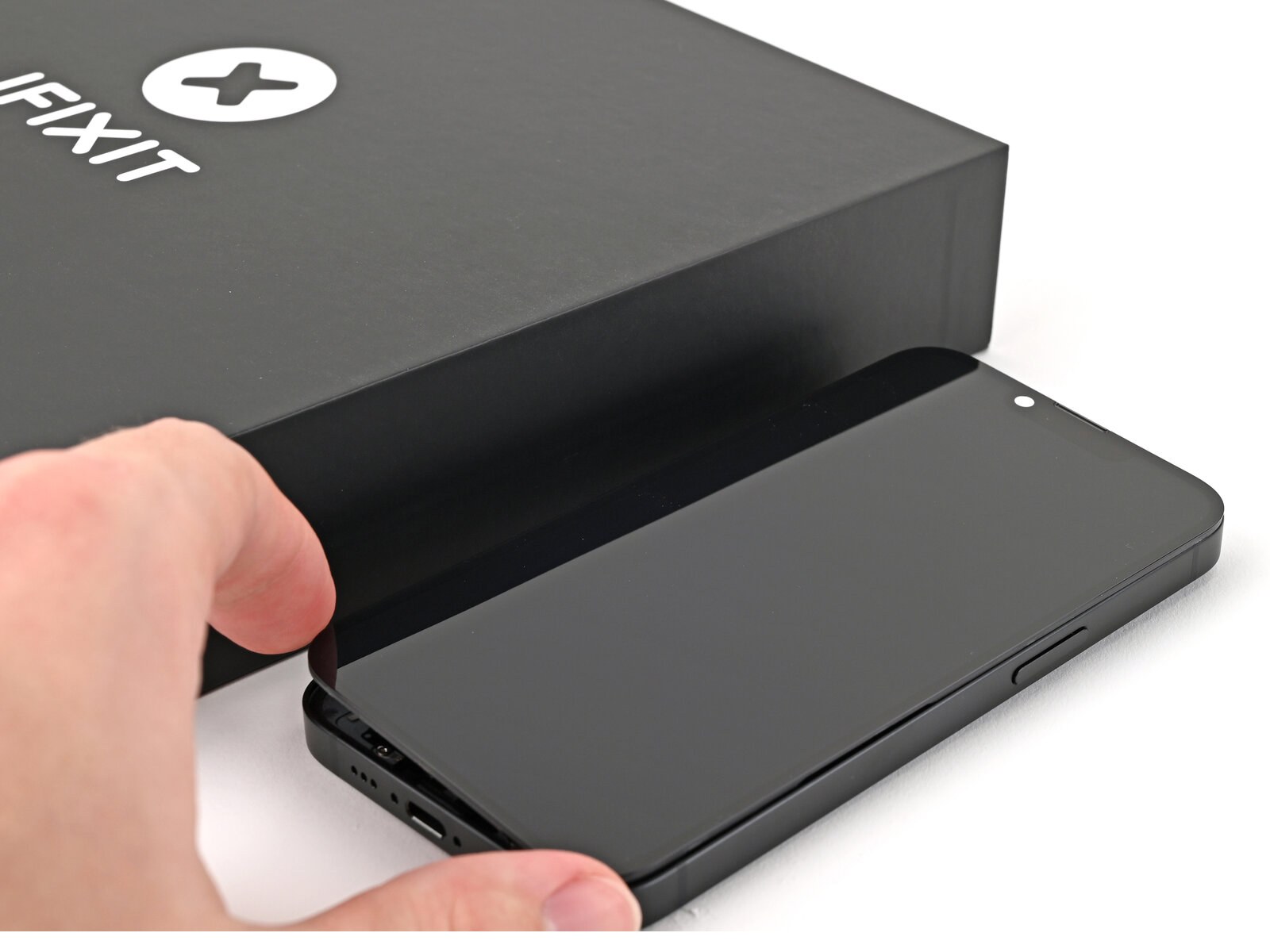

7. Prop up the screen

At this point, the screen should be free from the frame. If the screen feels stuck, go back around the perimeter with your pick to check for missed sections of adhesive or stuck clips. Swing open the screen over the left edge of the phone and support it with a clean, sturdy object.

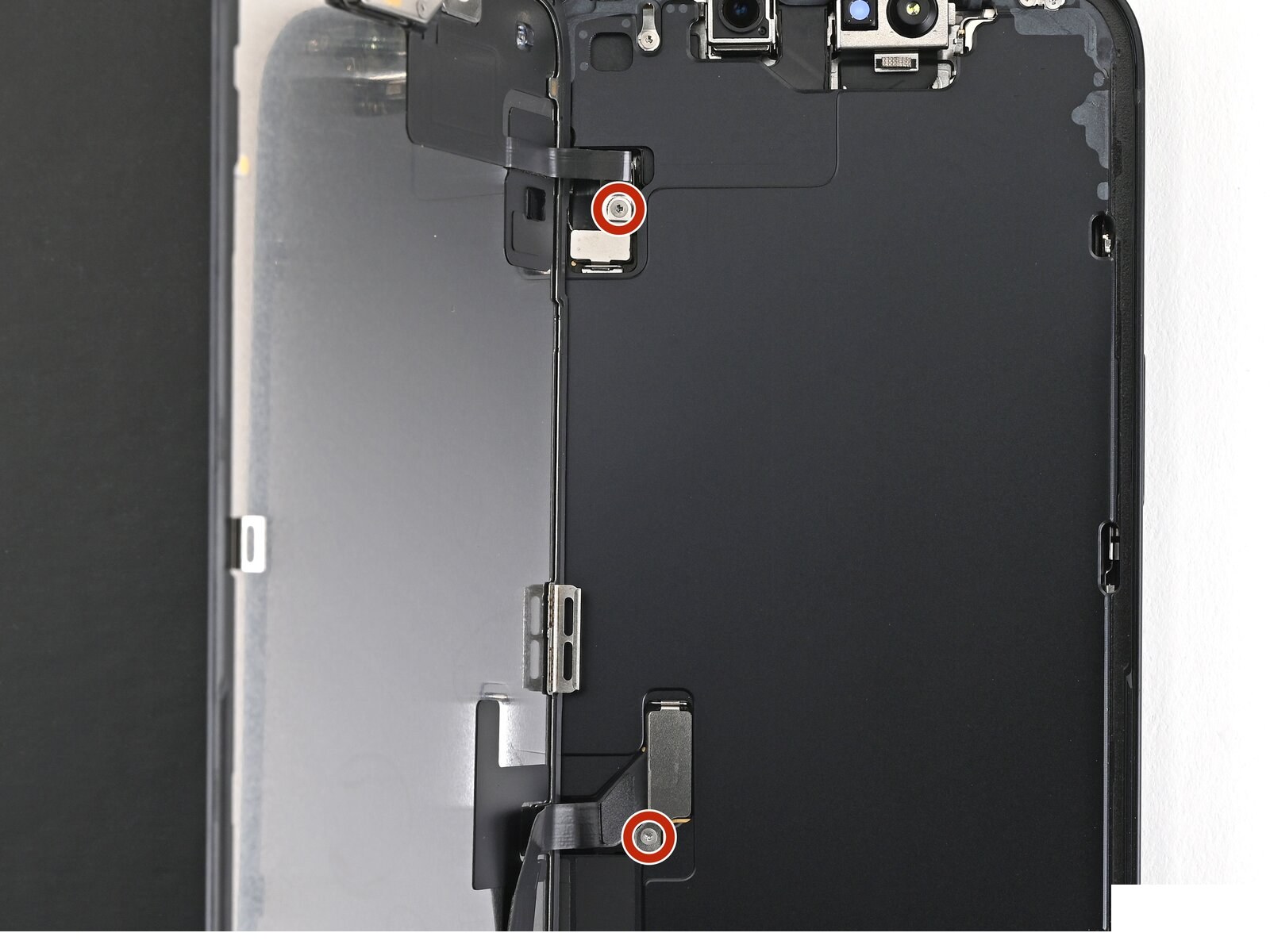

8. Remove the cover screws

Use a tri-point Y000 screwdriver to remove the two 0.9 mm‑long screws securing the front sensor connector and screen connector covers.

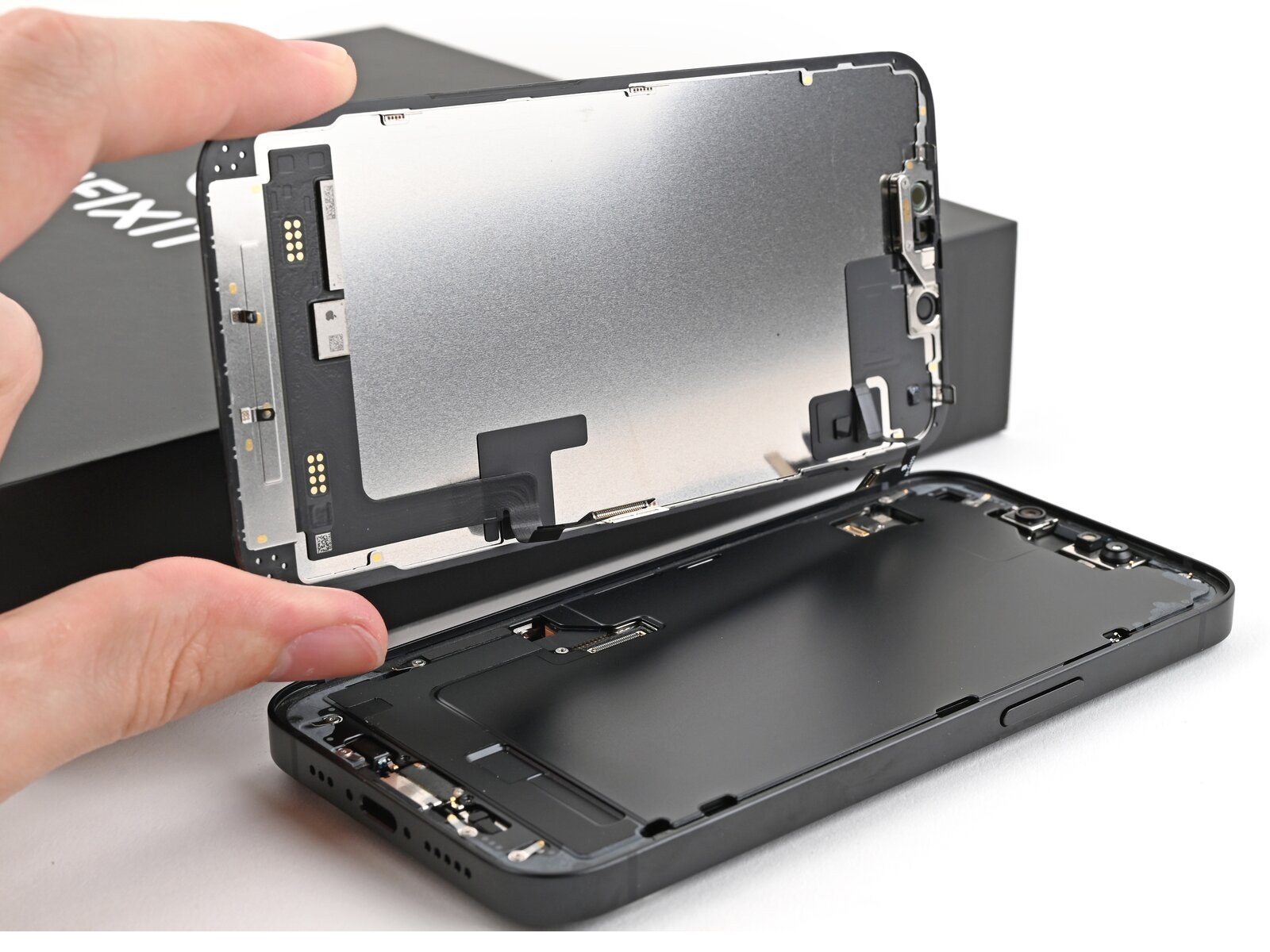

10. Remove the screen

Lift the screen off the frame and remove it.

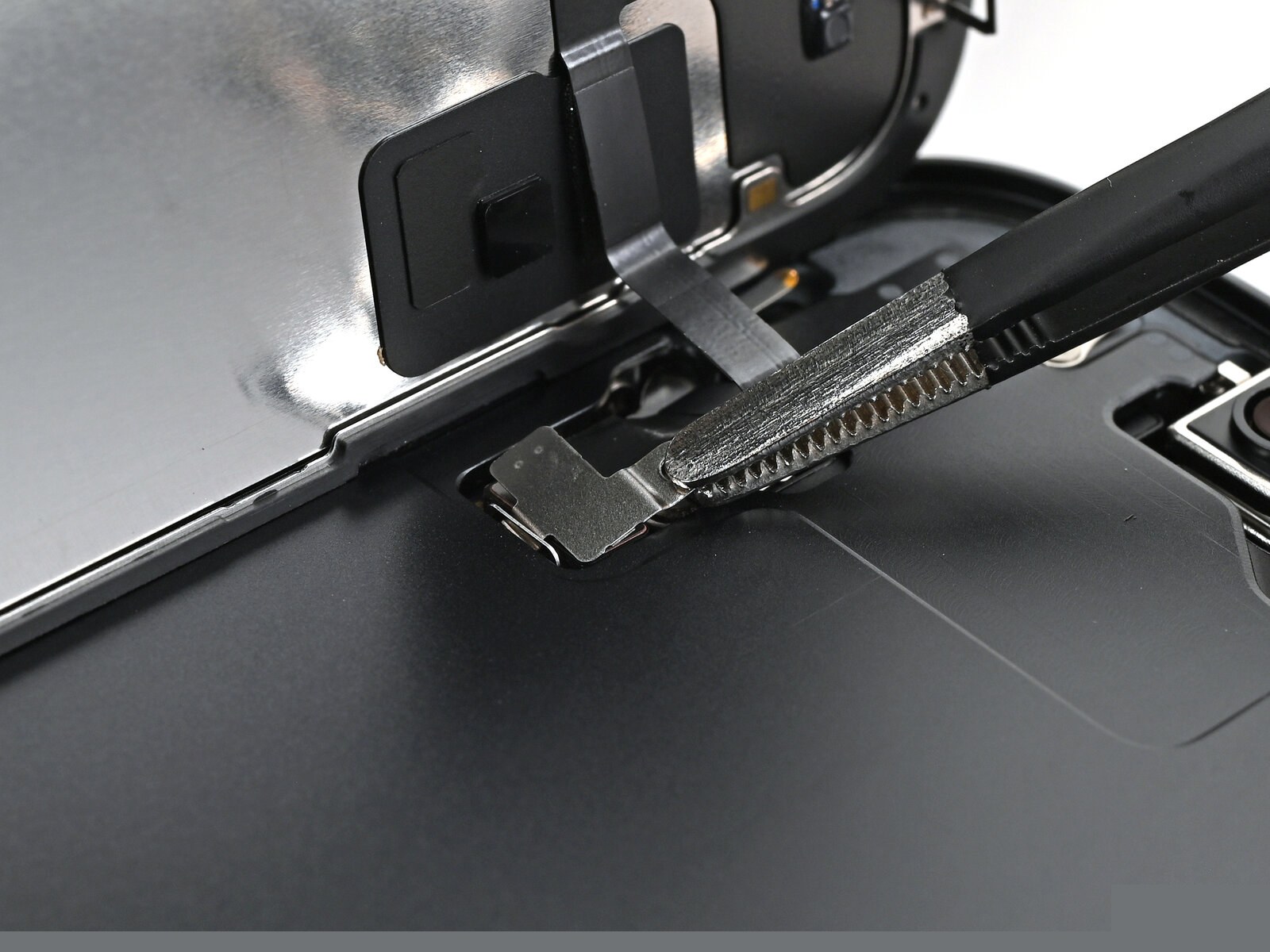

11. Remove the covers

Use tweezers or your fingers to lift the front sensor cover to a 90-degree angle and unhook it from its slot in the logic board. Lift the cover out of its slot and remove it.

2) Transfer parts to the new screen

Move the ambient light / front sensor hardware from the old assembly to the new iPhone 16e screen when the replacement part requires it.

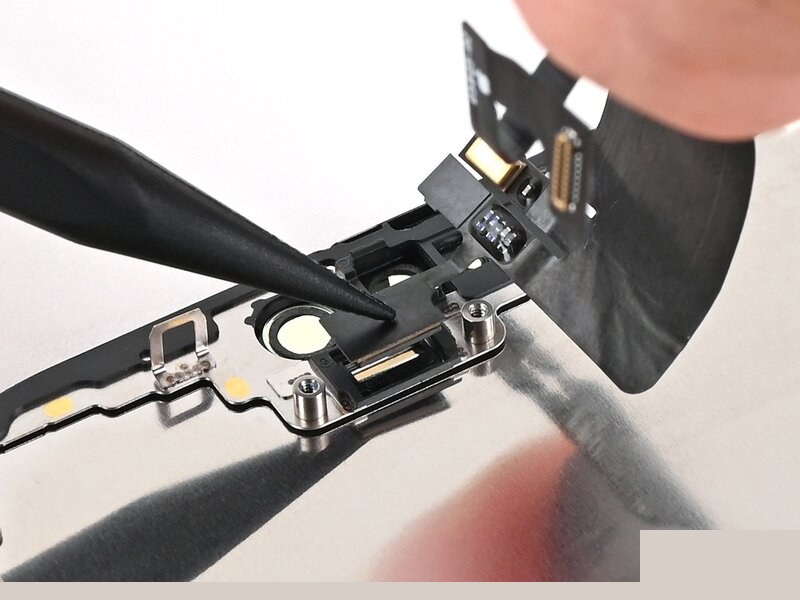

12. Install the front sensors

Align the ambient light sensor with its recess in the back of the screen. Use a spudger or your finger to press the ambient light sensor into its recess.

3) Install the new screen

This is the installation phase: clean old adhesive, apply new waterproofing adhesive, reconnect display flexes, test, then seat and screw the iPhone 16e screen.

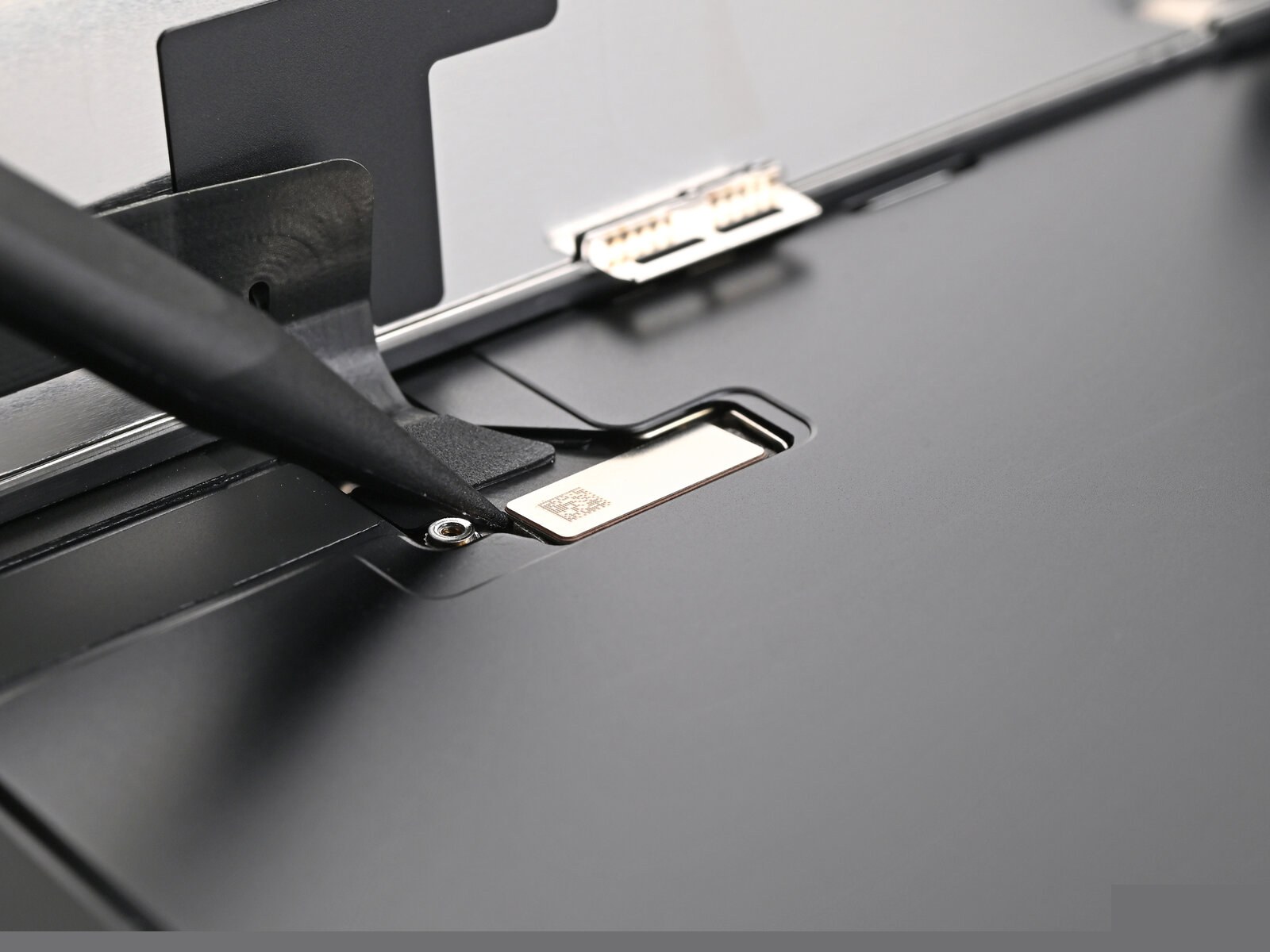

9. Disconnect the screen

Use the tip of a spudger to pry up and disconnect the screen press connector. Repeat for the front sensor press connector.

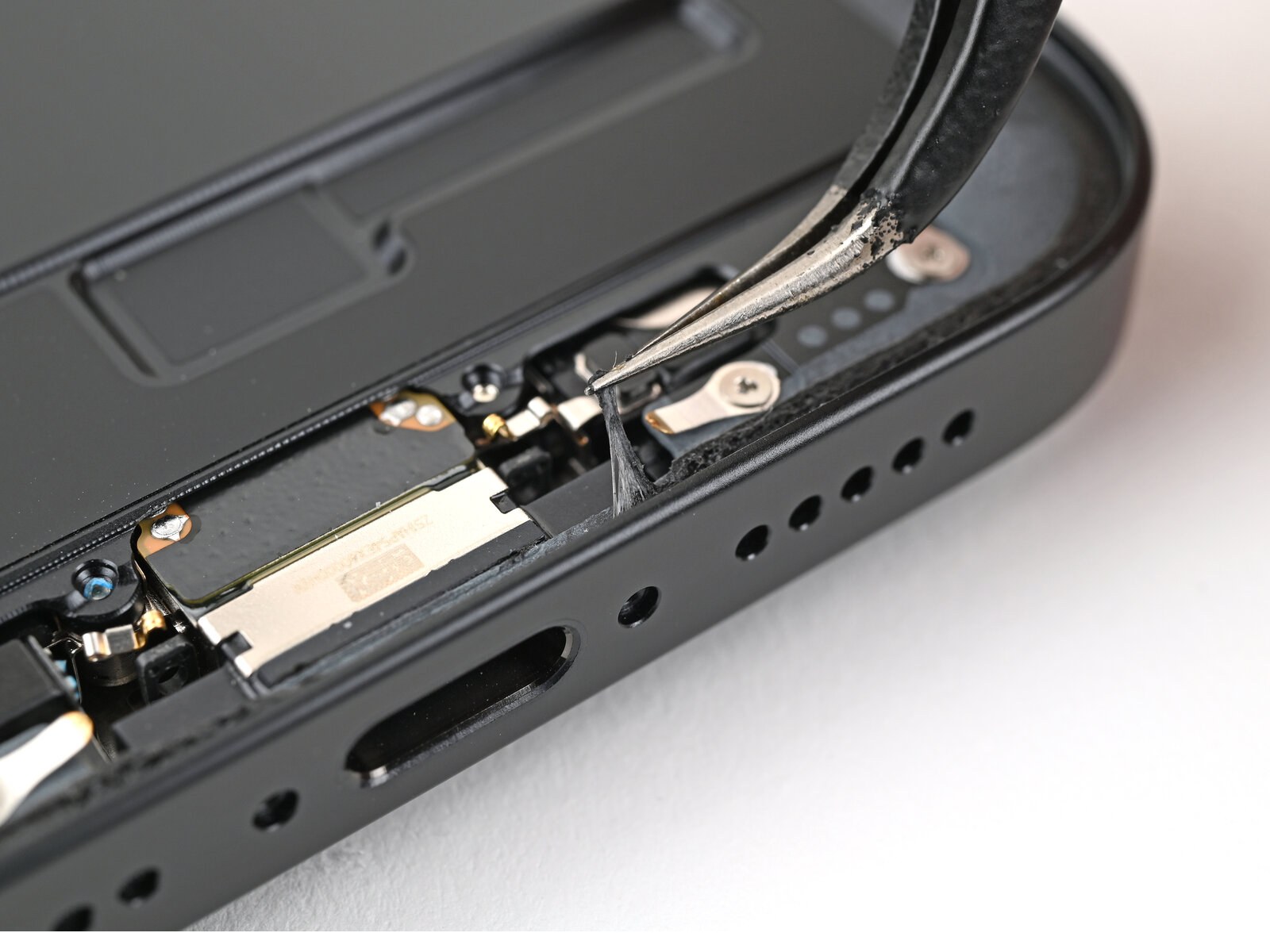

13. Remove the old adhesive

Use tweezers to remove the adhesive around the perimeter of the frame. You may need to bunch up the adhesive with the point of a spudger before gripping it with tweezers. Use a coffee filter or a lint‑free cloth and high‑concentration isopropyl alcohol (>%90) to clean off any adhesive residue.

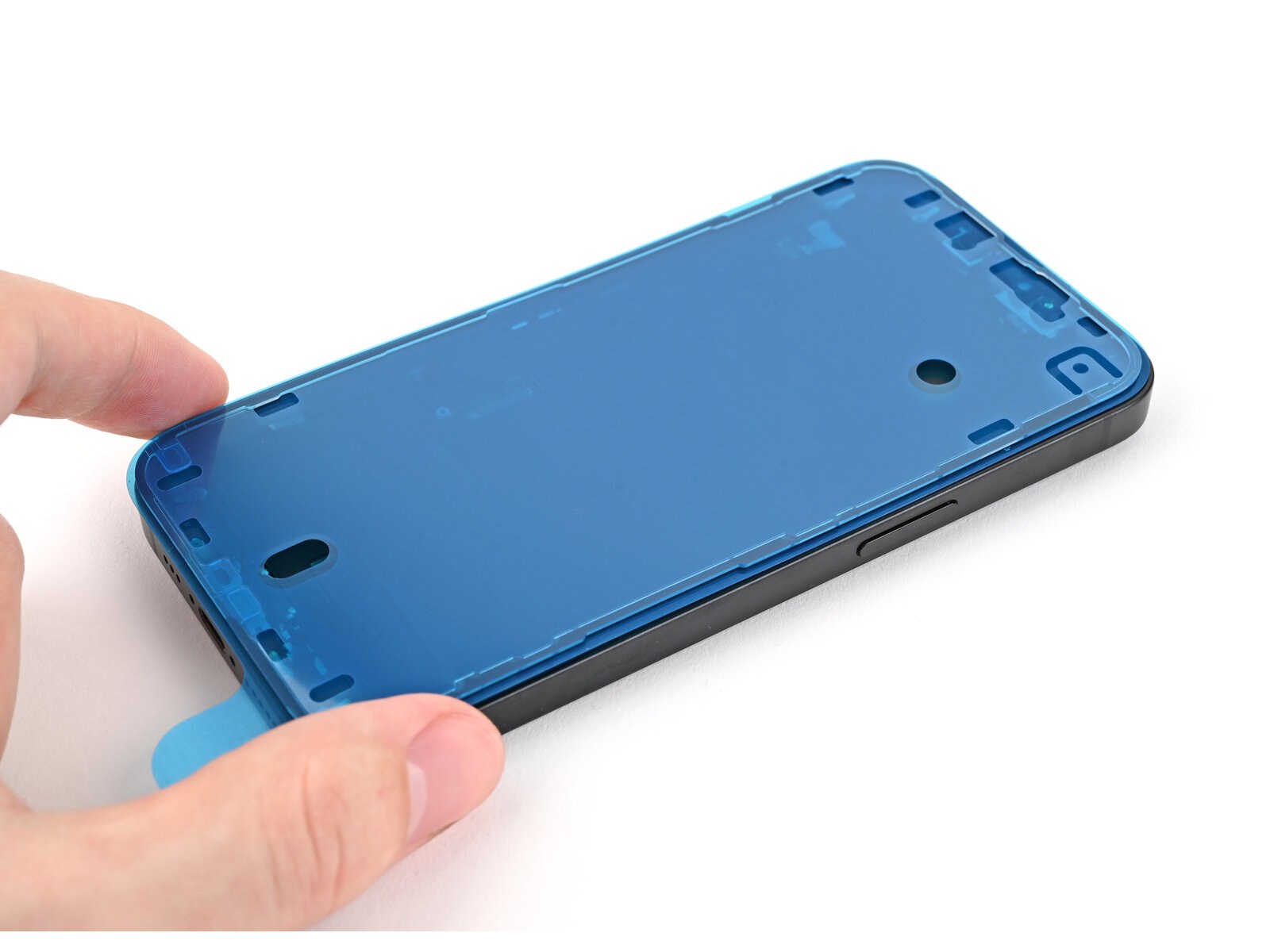

14. Orient the adhesive

Lay the adhesive on top of the phone and use features like cutouts for spring contacts and the front‑facing camera to make sure the adhesive is oriented correctly. Your adhesive may look slightly different.

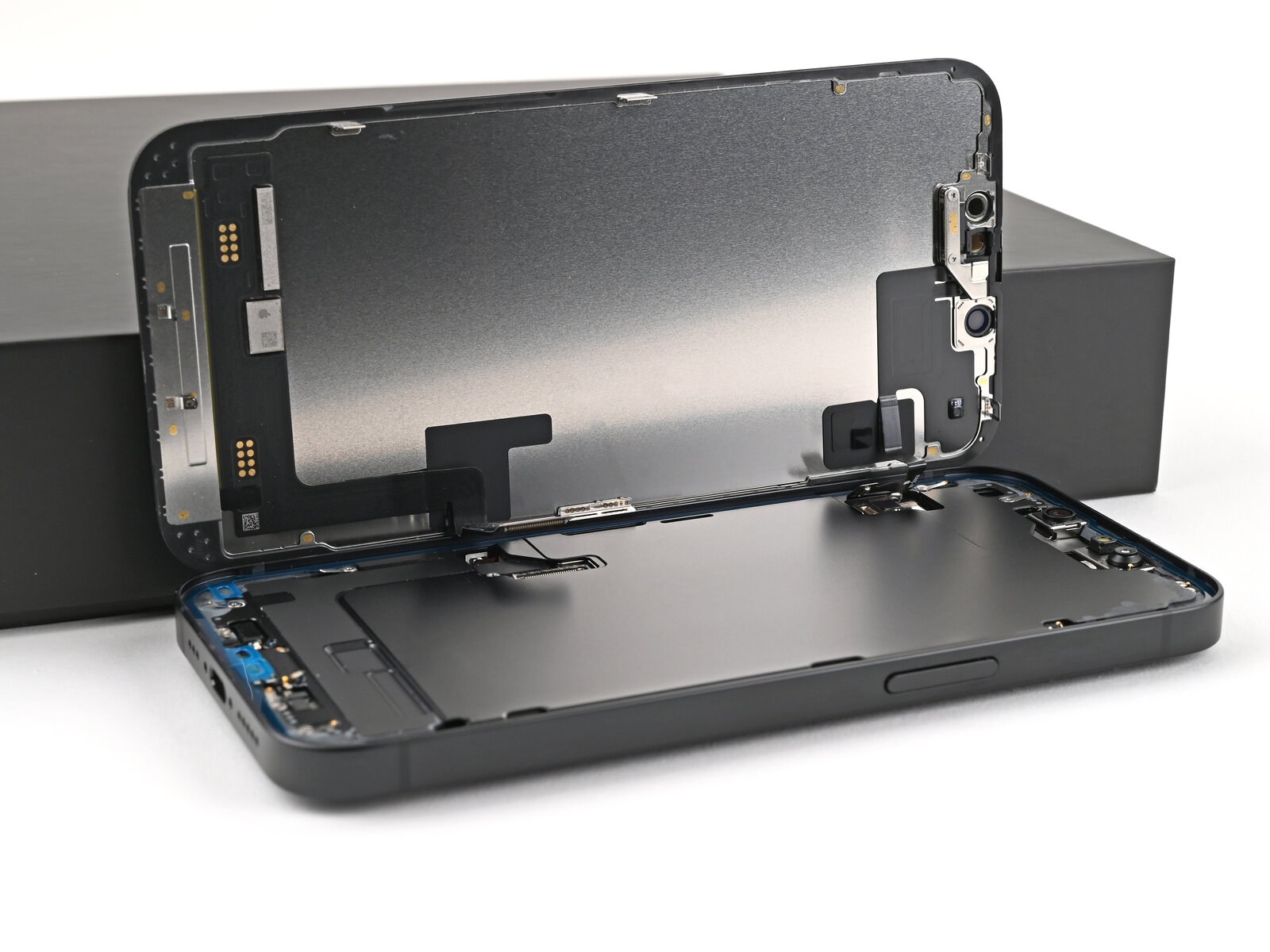

15. Connect the screen

Prop up the screen along the left edge of the iPhone, using a box or similar sturdy object to support the screen. Use the flat end of a spudger or your finger to connect the screen press connector. Repeat for the front sensor press connector.

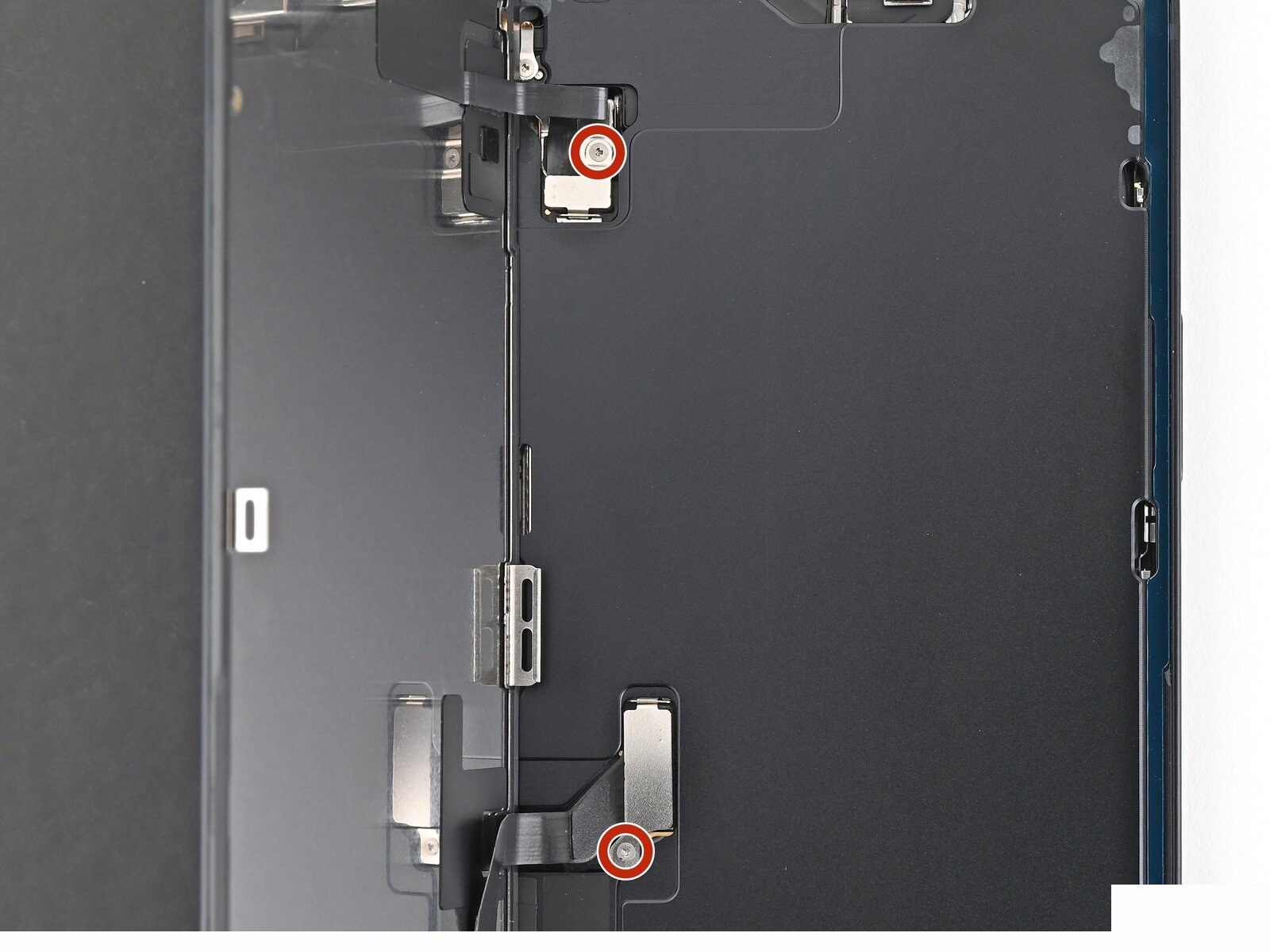

16. Install the cover screws

Use a tri-point Y000 screwdriver to install the two 0.9 mm‑long screws securing the front sensor connector and screen connector covers.

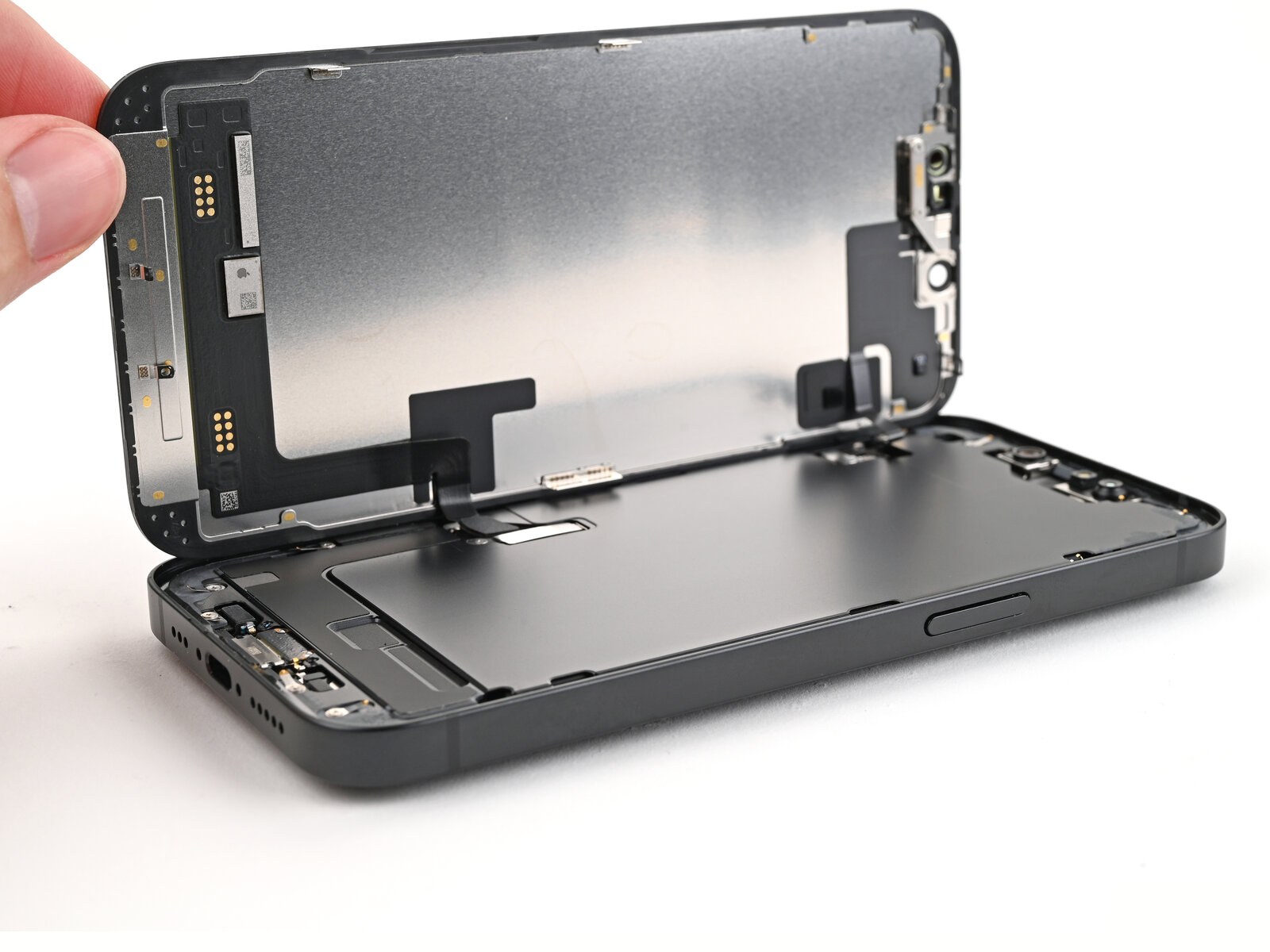

17. Place the screen

Hold the screen above the phone and align it with the frame.

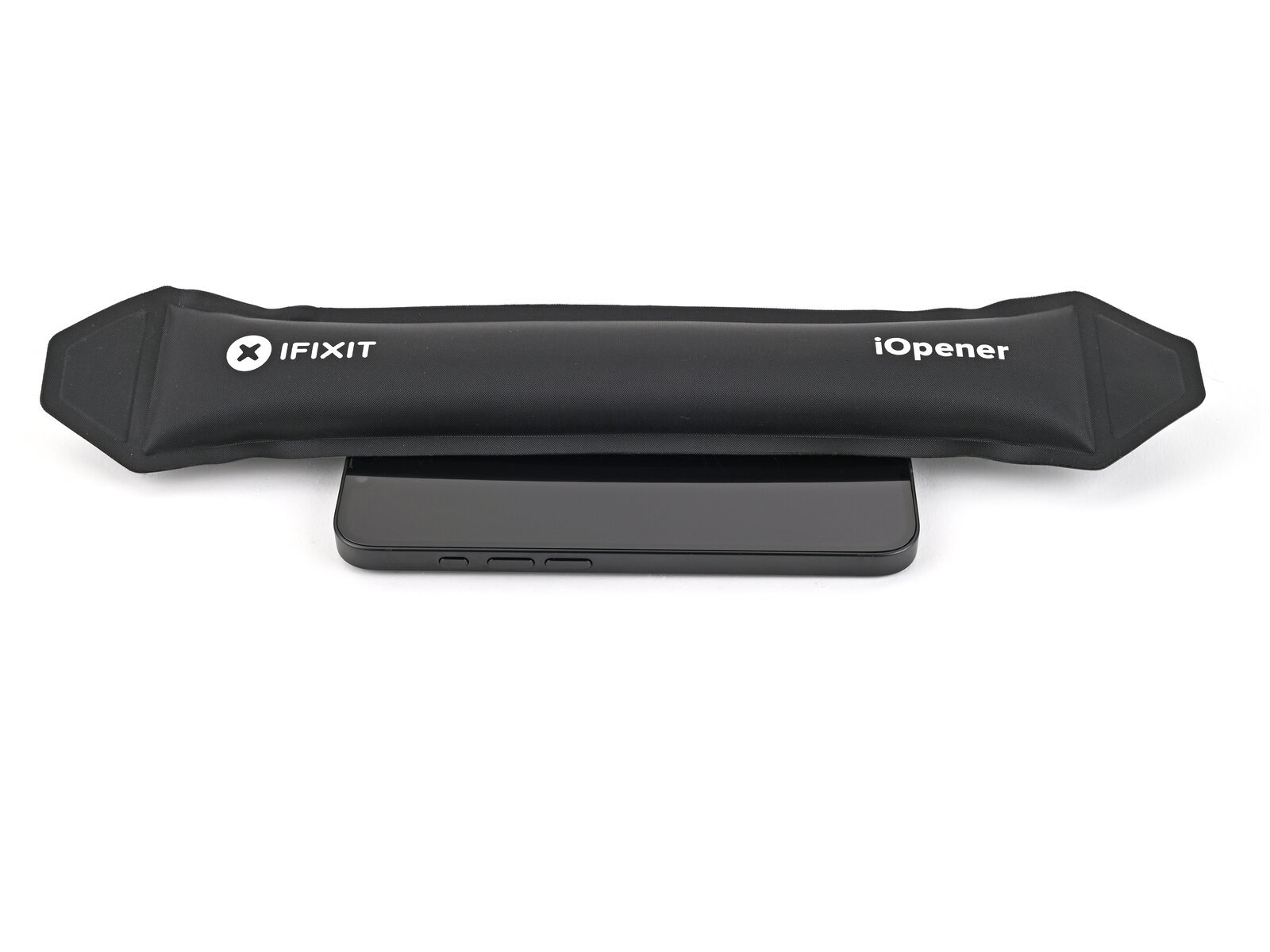

18. Heat the screen

To help the adhesive bond, apply heat to the edges of the screen using an iOpener, hair dryer, or heat gun until it's hot to the touch. If you have screen vise clamps, use them to strengthen the bond of your new adhesive. If not, keep reading for more ways to secure the screen.

19. Install the pentalobe screws

Use a P2 pentalobe screwdriver to install the two 7.8 mm‑long screws on either side of the charging port.

4) Calibrate & handover

1. Power on and check display, touch, True Tone / auto-brightness behaviour, Face ID path, earpiece and cameras.
2. For genuine Apple screens: Settings → General → About → Parts & Service History → Restart & Finish Repair (Repair Assistant) when available.
3. Explain FIX4U repair warranty (3 months) and return the device cleaned.
